7.0 inch FHD IPS landscape resolution 1200 * 1920 MIPI interface 40PIN display screen
Product Overview
1.1 Description
YT0702B001_V01is a color active matrix a-Si LCD FOG, using a-Si (amorphous silicon ) TFTs (Thin Film Transistors) as an active switching devices. The FOG has a 7.02 inch diagonally measured active area with 1200×1920 resolutions (1200 horizontal by 1920 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this FOG can display 16.7M colors.
1.2 Features
-PPI: 322
-Color Gamut: NTSC 80%(Typ.) 75%(Min.)
-RGB Interface
-Thin Border
-RoHS Compliant
1.3 Application
-Industrial Display
-Outdoor Display
-Outdoor Photography
General Specifications
| NO. | Item | Specification | Unit |
| 1 | Display Size | 7.02 | inch |
| 2 | Display type | FHD IPS | - |
| 3 | Resolution | 1200 x (RGB) x 1920 | - |
| 4 | Color Depth | 16.7M | - |
| 5 | Pixel Size | 26.25(H)× 3× 78.75(V) | um |
| 6 | Active Area | 94.5(H) × 151.2 (V) | mm |

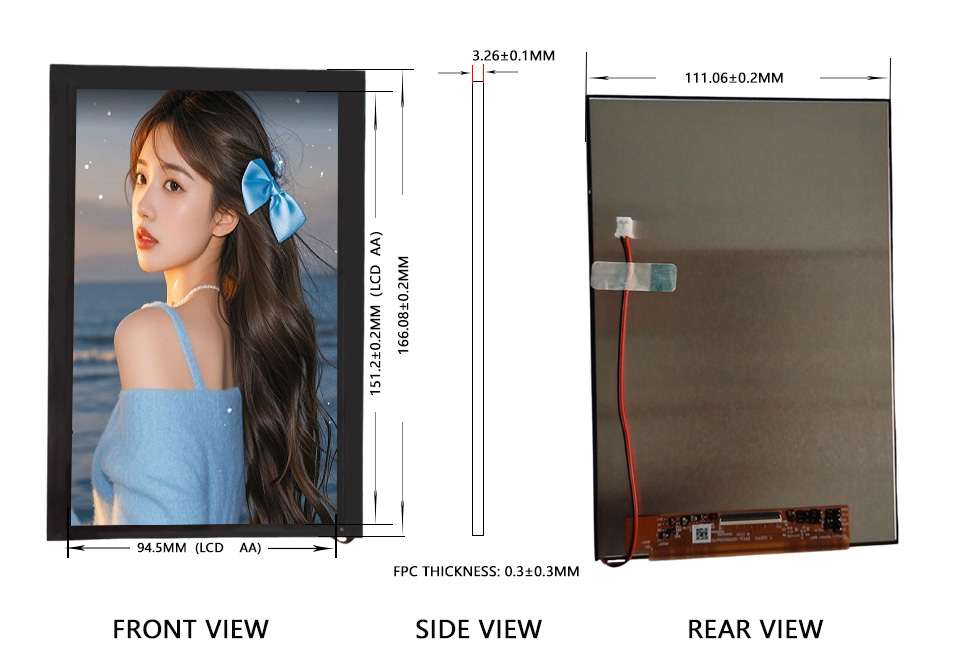

| 7 | Module size | 111.06(H) × 166.08(V) × 3.26(D) | mm |
| 8 | Driver IC RAM Size | - | - |

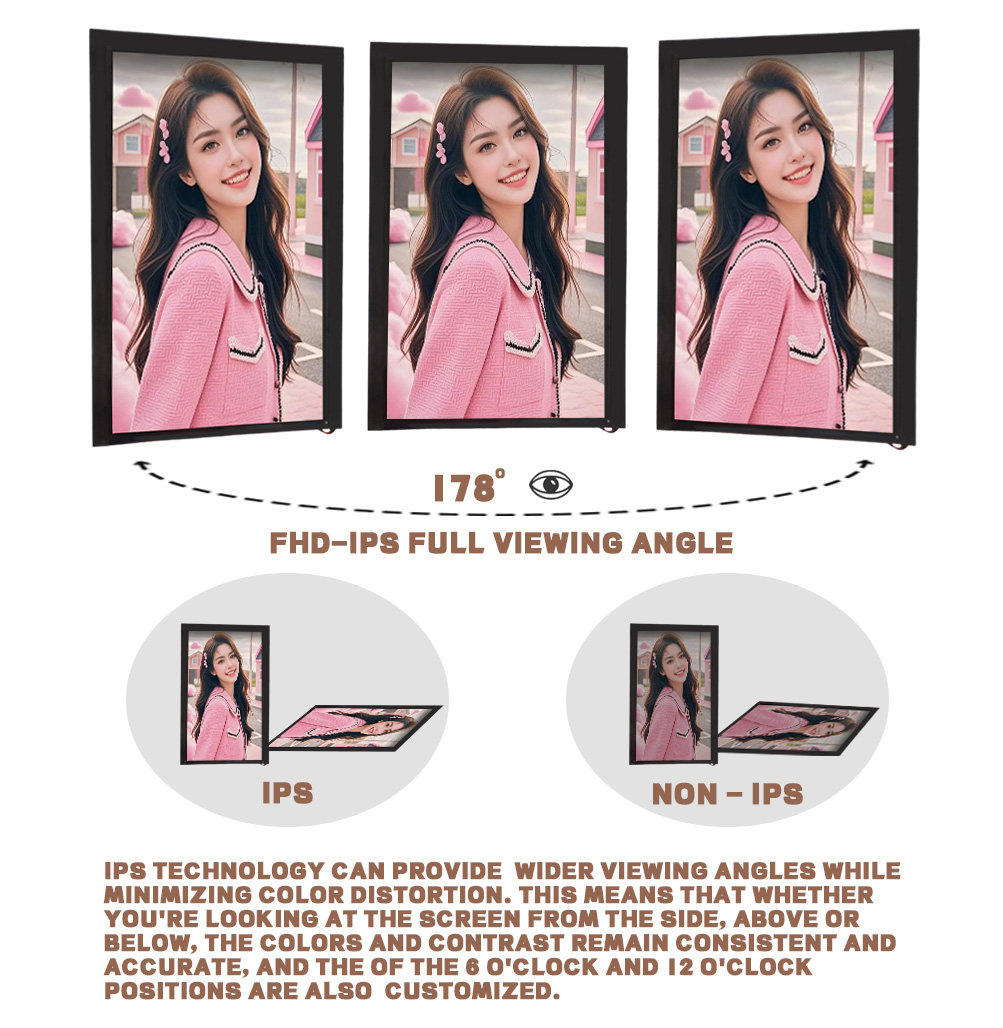

| 9 | Viewing Direction | 80/80/80/80 (Typ.) 75/75/75/75 (Min.) | Deg. |
| 10 | Drive IC | HX8279-D01*2 Cascade | - |
| 11 | Contrast Ratio | 1200 | - |
| 12 | Operating temperature range | -30~+80 | ℃ |
| 13 | Storage temperature range | -30~+80 | ℃ |
| 14 | Interface | MIPI | |
| 15 | Brightness | 1000 | cd/m |
| 16 | Light Source | 56 LEDs White | - |
| 17 | Display Mode | Normally black,Transmissive | - |
Product Details
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be customized;
>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 2-3weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
|
|
