2.83inch IPS LCD display screen interface 8-bit MCU, commonly used instruments and meters, small display terminal
Product Overview
1.1 Description
The YT028B017 is is acolor active matrix TFT-LCD Modelusing amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. It is a transmissive type display operating in the normal black. This TFT-LCD has a 2.83inch diagonally measured active area with 240horizontalby320vertical pixel array. Each pixel is divided into Red, , Green, Bluedots which are arranged in vertical stripe and this panel can display 16.7M colors. This module is commonly used as a display terminal for industrial display screens such as instruments, smart homes, access control, or visual doorbells.
1.2 Feature
-0.4t Glass(Single)
-Module Design
-RoHS Compliant
-TFT Interface: MCU 8-BIT Interface
General specifications
| No. | Item | Specification | Unit |
| 1 | LCD Size | 2.83 | inch |
| 2 | Panel Type | IPS | - |
| 3 | Resolution | 240x (RGB) x 320 | pixel |
| 4 | Display Mode | Normally black,Transmissive | - |
| 5 | Display Number of Colors | 262K | - |
| 6 | Viewing Direction | ALL | - |
| 7 | Contrast Ratio | 1200 | - |
| 8 | Luminance | 250 | cd/m2 |
| 9 | Module Size | 50.00(W ) x 59.20(L) x2.3(T) | mm |
| 10 | Active Area | 43.20(W) x 57.60(L) | mm |
| 11 | Pixel Pitch | 0.180(W ) x 0.180(L) | mm |
| 12 | Weight | TBD(TYP) | g |
| 13 | Driver IC | GC9307 | - |
| 14 | Driver IC RAM Size | 240x24x320 | bit |
| 15 | Light Source | 6 LEDs White | - |
| 16 | Interface | MCU 8BIT | - |
| 17 | Operating Temperature | -20~70 | ℃ |
| 18 | Storage Temperature | -30~80 | ℃ |

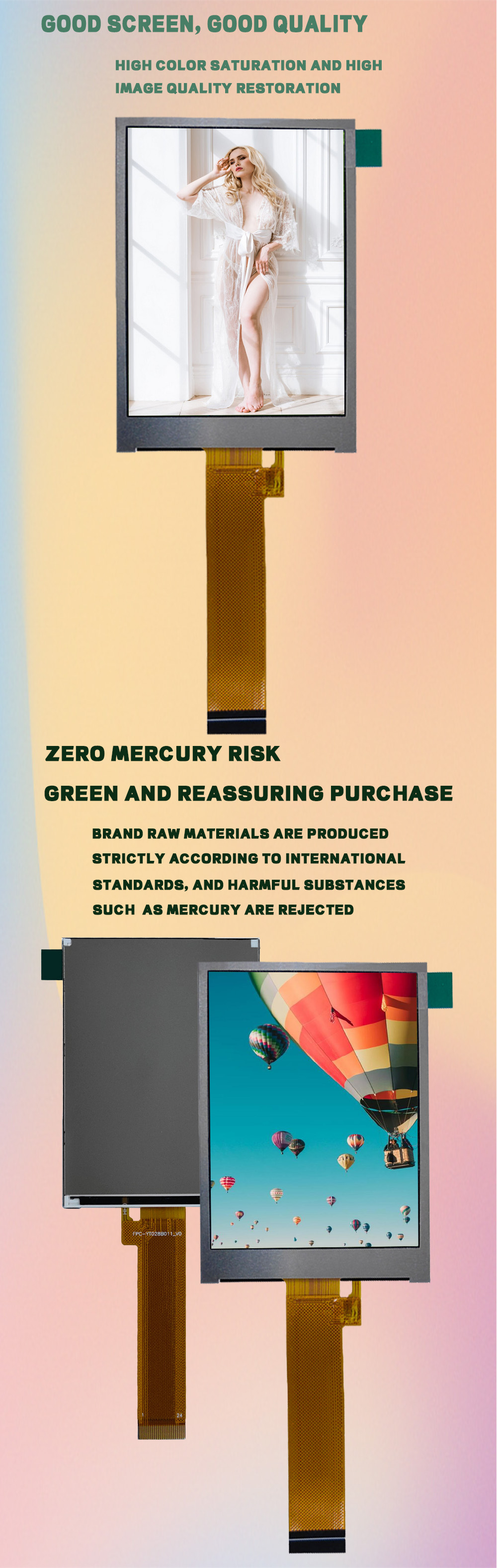

Product Details
Our strengths

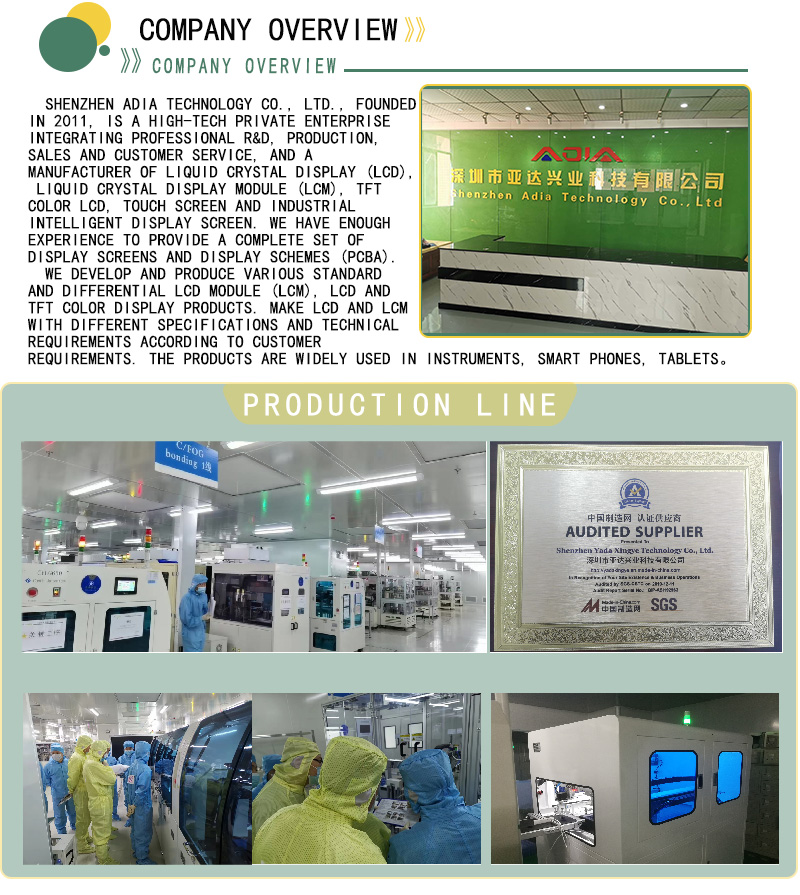

Our factory
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be customized;
>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
